Vacuum Brazed Flat Cup Wheel for stone fabrication
product introduction

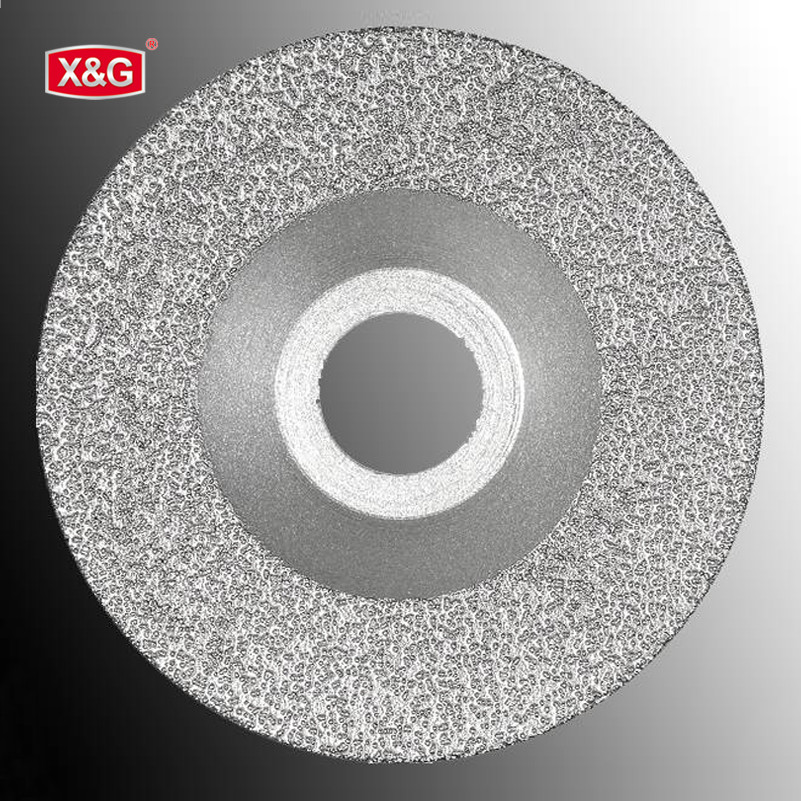

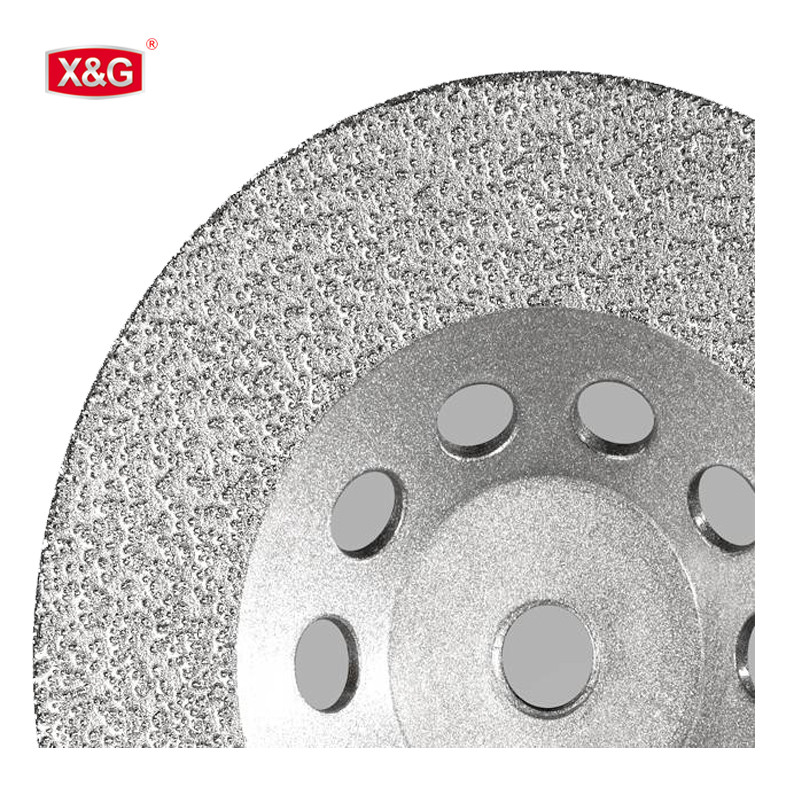

The Flat Cup Wheel from Xingong is a specialized grinding tool designed for fast and efficient surface grinding. Its unique flat design, coupled with a thinner steel body, makes it lightweight and easy to handle, ensuring quicker grinding operations. This wheel is suitable for use on marble, limestone, and granite, and can be utilized in both wet and dry conditions.
product advantage
• Versatile Grit Sizes: Available in 30/40# coarse grit for aggressive grinding and 50/60# medium grit for finer surface finishing.
• Flexible Use: Can be used for both wet and dry grinding on various stone surfaces, including marble, limestone, and granite.
• Efficiency: The lightweight design and high-quality diamond abrasives ensure quick and effective material removal, enhancing productivity.
• Safety: Advanced manufacturing processes reduce potential hazards during use.
technical data
| Diameter(Inch/mm) | Segment Height(mm) | Grit Size(#) | Connection |
| 100 | 2.0-5.0 | 30#-40#，50-60# | 7/8“-5/8"(22.23) |
| 115 | 2.0-5.0 | 30#-40#，50-60# | 7/8“-5/8"(22.23) |
| 125 | 2.0-5.0 | 30#-40#，50-60# | 7/8“-5/8"(22.23) |
| 150 | 2.0-5.0 | 30#-40#，50-60# | 7/8“-5/8"(22.23) |
PACKAGING & SHIPPING
• For urgent orders with lighter weight or samples, we recommend using express delivery.
• For regular orders weighing over 45kgs, air cargo is recommended.
• For large diameter saw blades or heavy items, shipping by sea is recommended.
Xingong will provide recommendations based on the specific requirements of each order.
