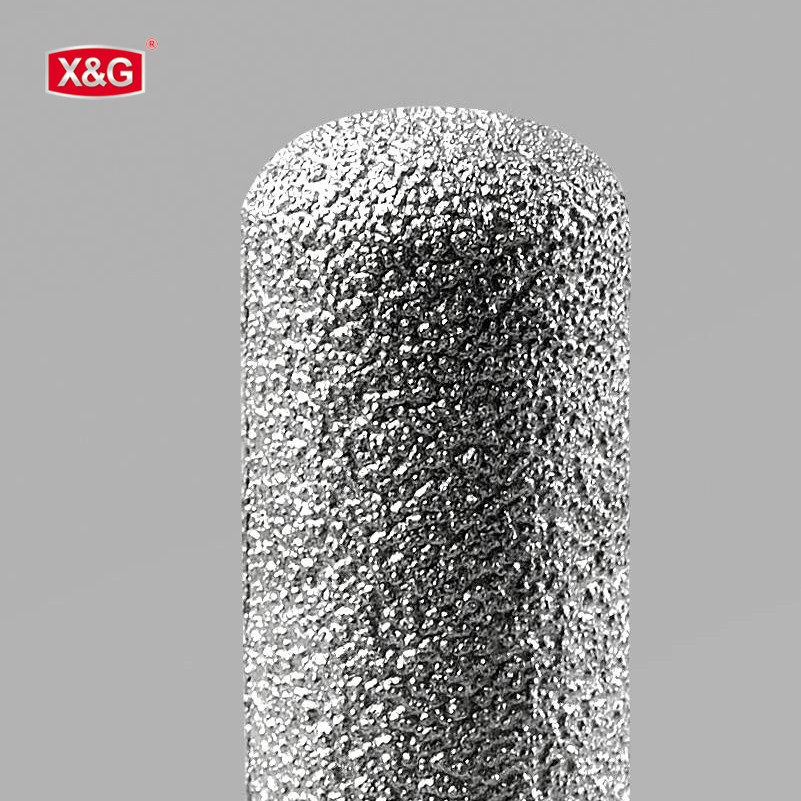

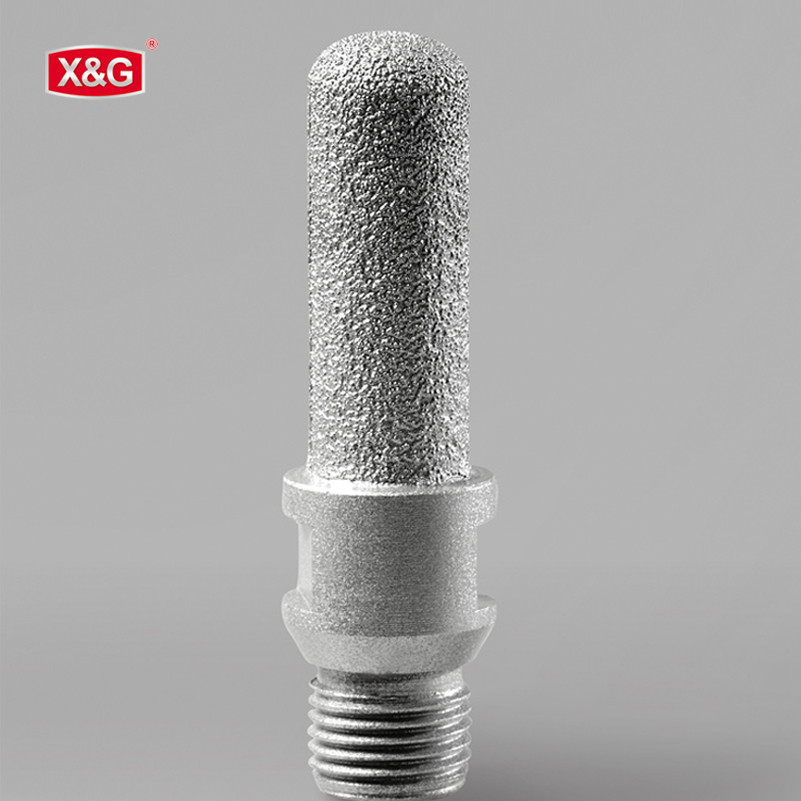

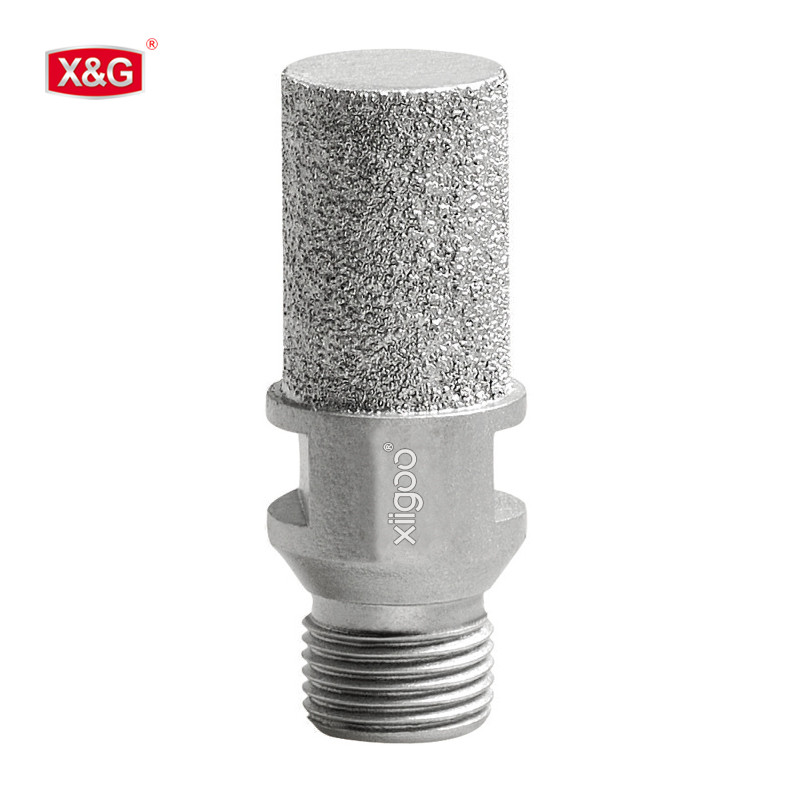

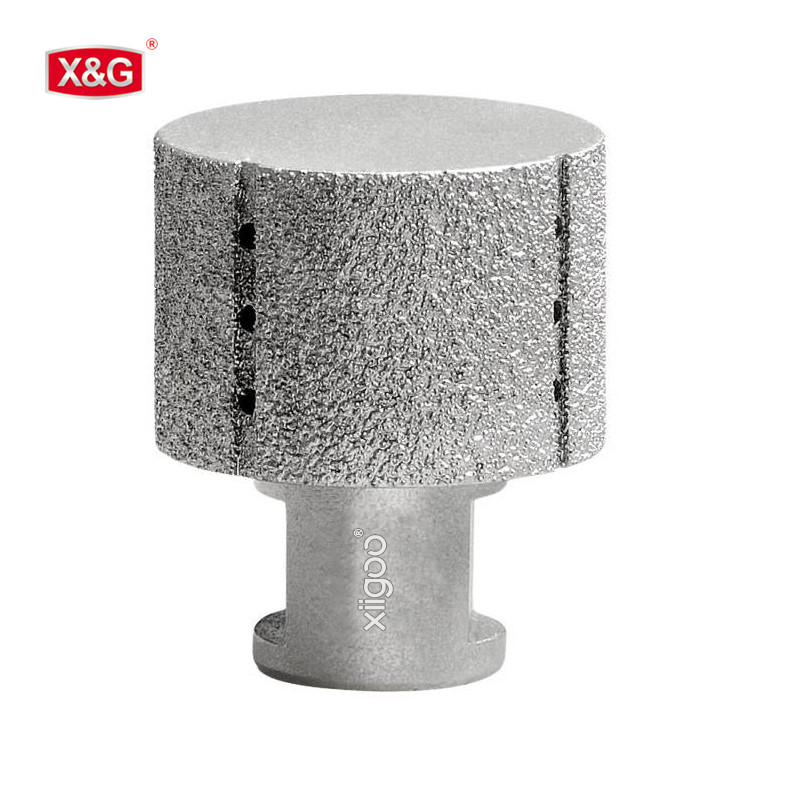

Vacuum Brazed Finger Bit Sink Wheel
product introduction
The Vacuum Brazed Finger Bit Sink Wheel from Xingong is designed specifically for cutting soft materials such as marble and limestone. These bits ensure smooth and fast milling at an affordable price, making them an ideal choice for various stone fabrication tasks.
product advantage
• Efficient Cutting: Designed for cutting soft materials like marble and limestone with high efficiency.
• Smooth and Fast Milling: Provides smooth and rapid milling on soft materials, enhancing productivity and reducing work time.
• Grooved Water Channel: Features a grooved water channel design that offers necessary lubrication while removing slurry from the cutting surface, ensuring clean and precise cuts.
• High-Speed Operation: Operates at speeds between 6,000 to 7,000 rpm with a feeding rate of 400 to 800 mm/min, ensuring fast and efficient performance.
• Versatile Connections: Available with M14, 5/8"-11, and G 1/2" thread connections to fit various machines and models, providing flexibility in usage.
technical data
| Diameter(Inch/mm) | Segment Height(mm) | Connection | Grit Size(#) | Product Name |
| 16 | 8.0-10.0 | M14/5/8"-11/G1/2" | 30#-60# | Finger Bit |
| 20 | 8.0-10.0 | M14/5/8"-11/G1/2" | 30#-60# | Finger Bit |
| 25 | 8.0-10.0 | M14/5/8"-11/G1/2" | 30#-60# | Finger Bit |
| 25 | 8.0-10.0 | M14/5/8"-11/G1/2" | 30#-60# | Sink Wheel |
| 50 | 8.0-10.0 | M14/5/8"-11/G1/2" | 30#-60# | Sink Wheel |
| 75 | 8.0-10.0 | M14/5/8"-11/G1/2" | 30#-60# | Sink Wheel |
PACKAGING & SHIPPING
• For urgent orders with lighter weight or samples, we recommend using express delivery.
• For regular orders weighing over 45kgs, air cargo is recommended.
• For large diameter saw blades or heavy items, shipping by sea is recommended.
Xingong will provide recommendations based on the specific requirements of each order.
