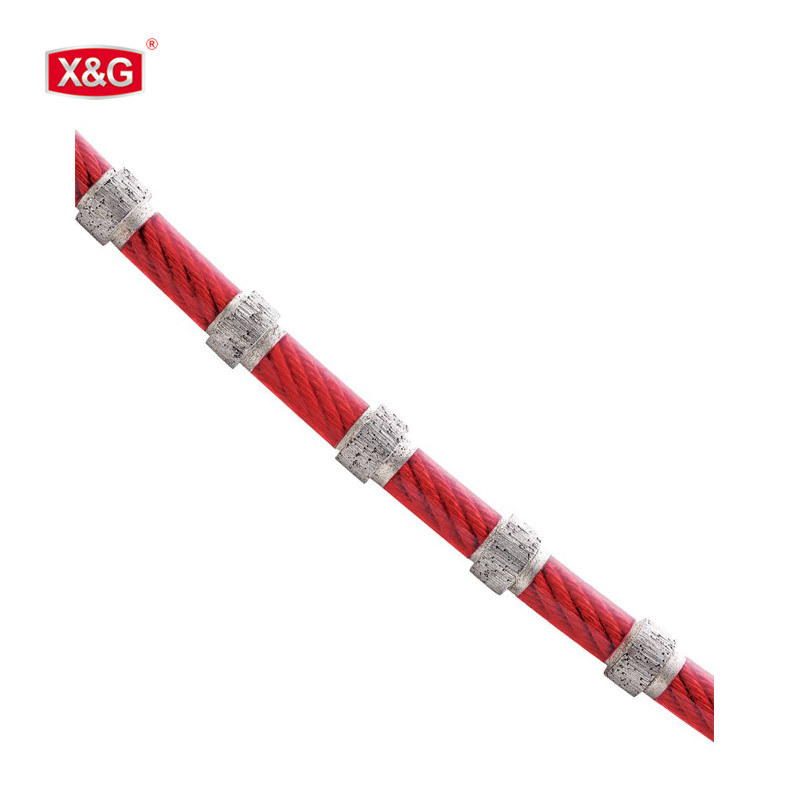

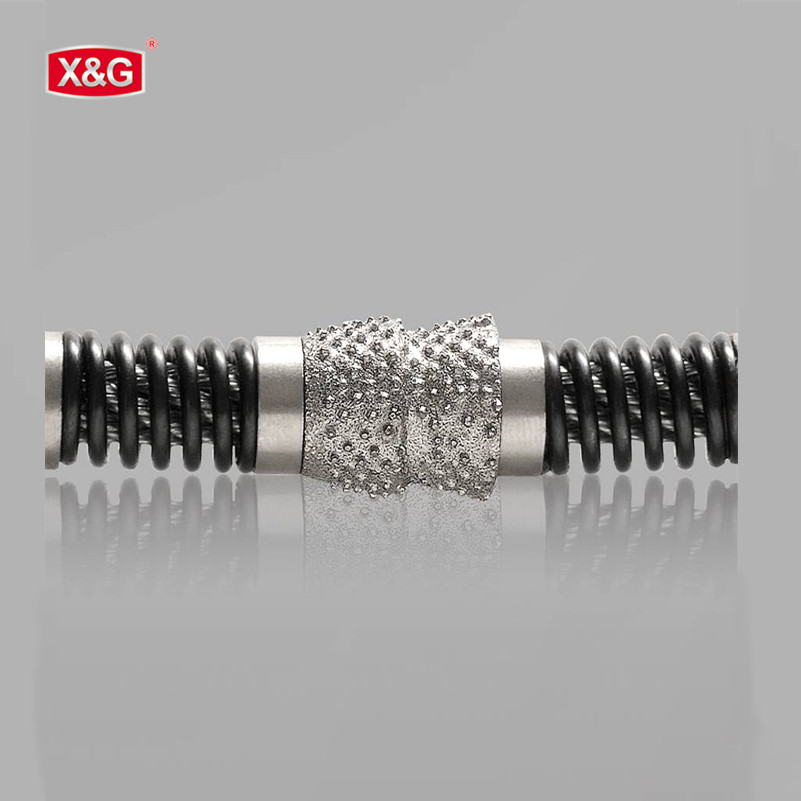

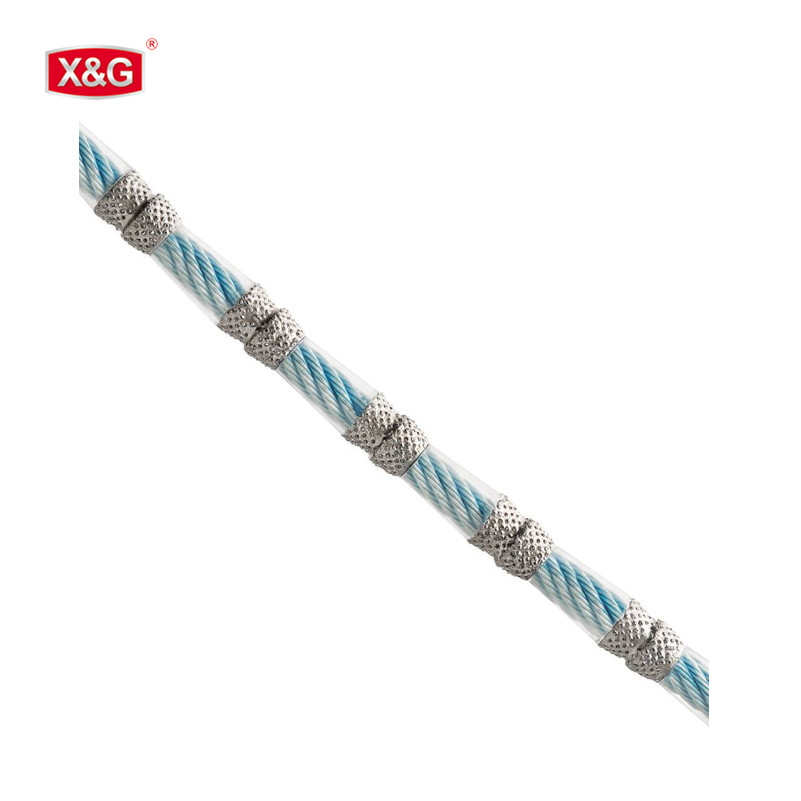

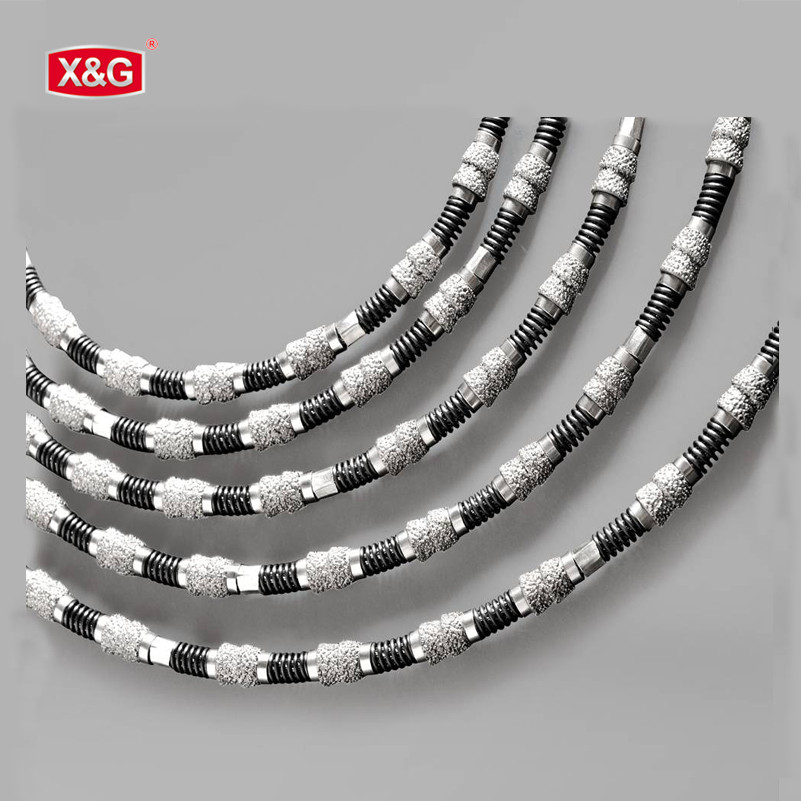

Vacuum Brazed Diamond Wire Saw
product introduction
The Vacuum Brazed Diamond Wire Saw from Xingong is engineered to deliver high bonding strength, superior cutting efficiency, and an extended lifespan. This wire saw is specifically designed for cutting large-size blocks in quarries and processing plants. It offers versatile applications with different bonds and diamond concentrations tailored for various materials, including granite, marble, and sandstone.
product advantage
• High Bonding Strength: Ensures that the diamond particles are securely attached, providing robust performance and reliability during cutting operations.
• Superior Cutting Efficiency: Offers fast and efficient cutting, significantly improving productivity and reducing cutting time.
• Extended Lifespan: Built to last longer, reducing the frequency of replacements and overall operational costs.
• Versatile Applications: Suitable for cutting large-size blocks in quarries and processing different materials with specific bonds and diamond concentrations for granite, marble, sandstone, and more.
• Safety: Advanced manufacturing processes reduce potential hazards during use.
• Cost-Effective: Combines performance and price, offering excellent value for money.
technical data
| Diameter(mm) | Bead Length(mm) | Bead Numbers(pcs/meter) | Grit Size(#) | Reinforcement | Application |
| 11mm | 12.5-11 | 28/30/32 | 30-40# | Spring/Plastic | Quarrying/Block Squaring |
| 10mm | 12 | 28/30/32 | 30-40# | Spring/Plastic | Quarrying/Block Squaring |
| 8.8mm | 11 | 28/30/32 | 30-40# | Spring/Plastic | Stone Profiling |
| 7.2mm | 9 | 28/30/32 | 30-40# | Spring/Plastic | Stone Cutting |
PACKAGING & SHIPPING
• For urgent orders with lighter weight or samples, we recommend using express delivery.
• For regular orders weighing over 45kgs, air cargo is recommended.
• For large diameter saw blades or heavy items, shipping by sea is recommended.
Xingong will provide recommendations based on the specific requirements of each order.
