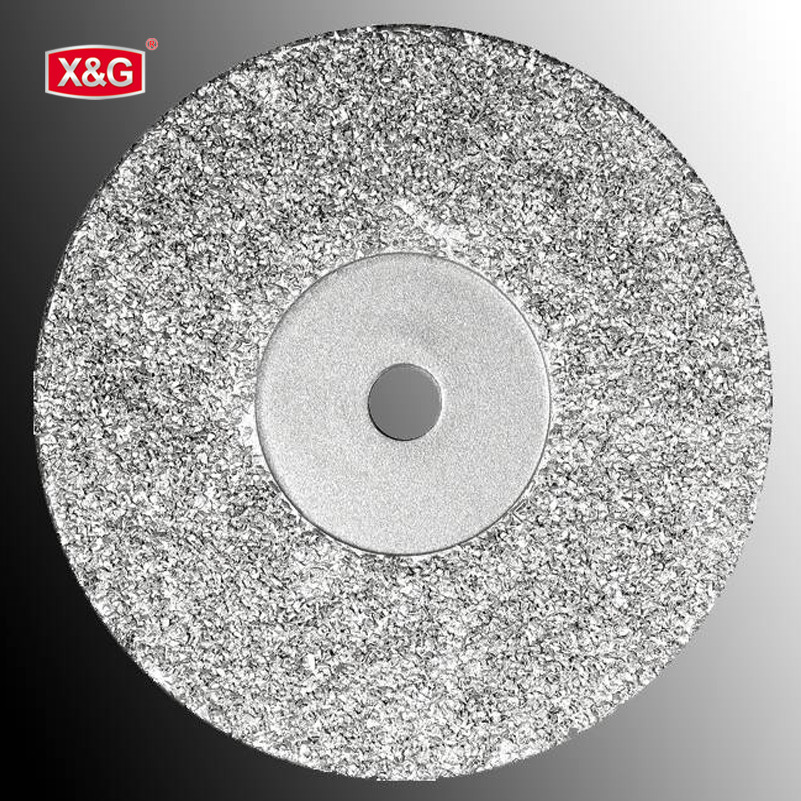

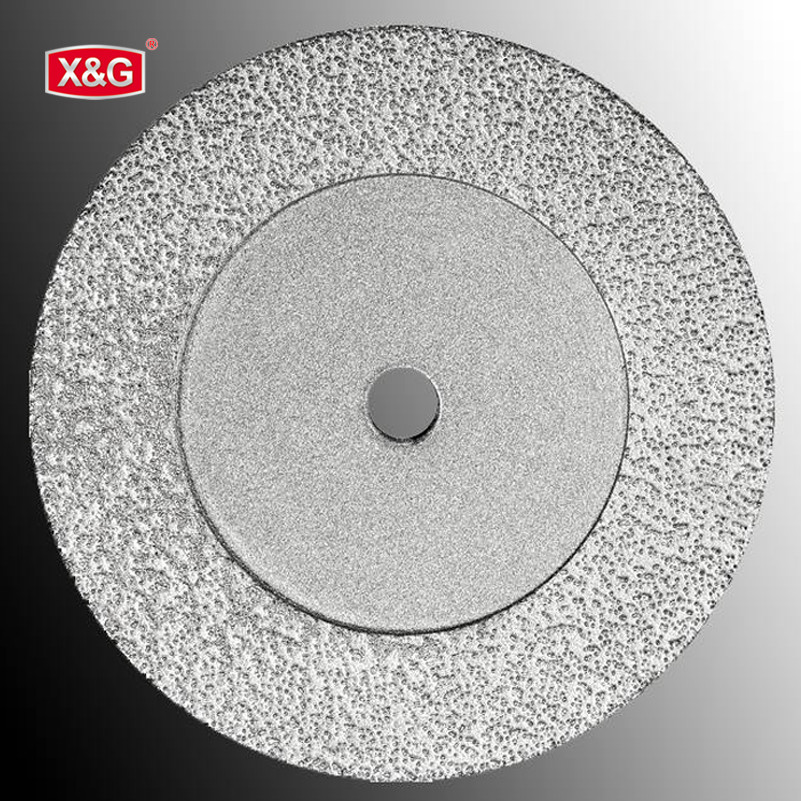

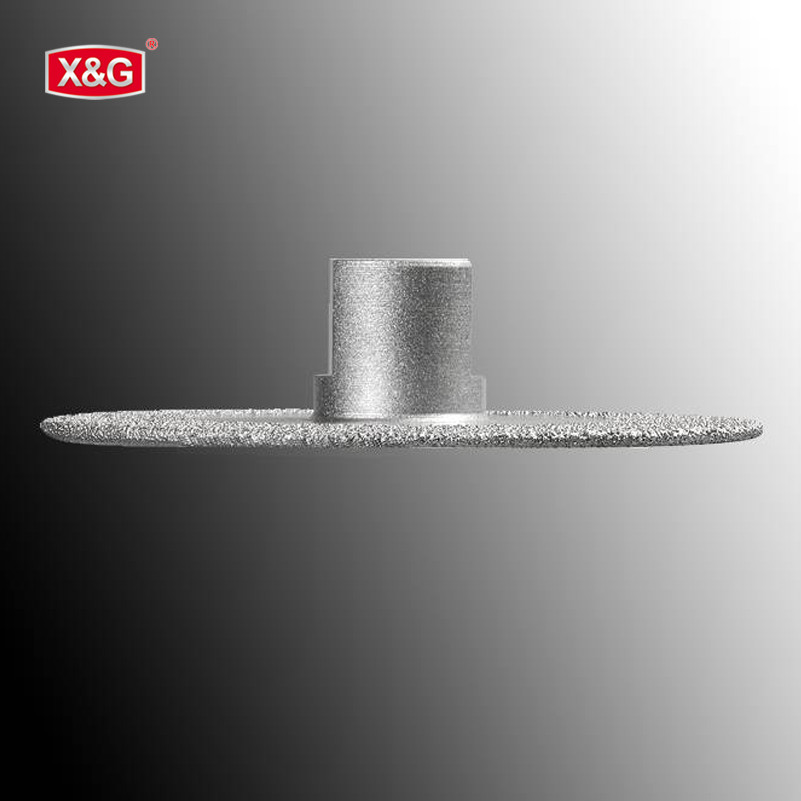

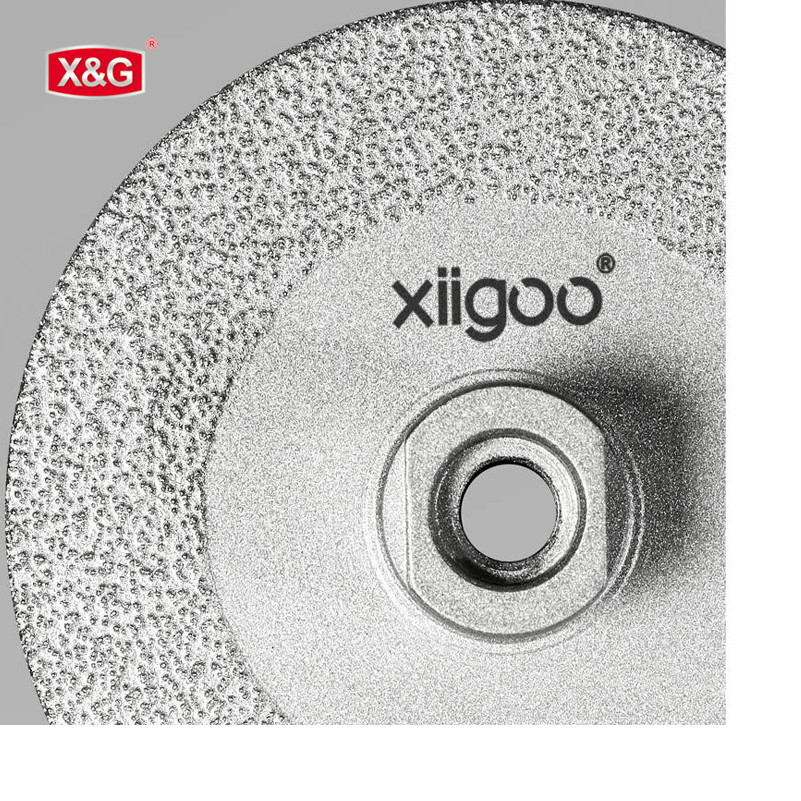

Vacuum Brazed Cut-N-Grind Wheel
product introduction
The Vacuum Brazed Diamond Cut-N-Grind Wheel from Xingong is a versatile tool designed for dual-purpose applications. With diamond abrasives vacuum brazed on both the face and edges of the wheel, this tool is engineered to cut and grind stone edges efficiently. It is suitable for use on marble, limestone, and granite, and can be utilized in both wet and dry conditions.
product advantage
• High Diamond Concentration: The high concentration of diamond abrasives ensures efficient cutting and grinding performance, enhancing productivity.
• Grit Options: Available in 30/40# coarse grit for aggressive material removal and 50/60# medium grit for finer finishes, catering to different project needs.
• Multiple Sizes: Comes in 4"-6" diameter sizes to suit various applications and requirements.
• Compatibility: Designed with 7/8" arbor, M14, or 5/8"-11 thread to fit most popular models of grinders, ensuring ease of use.
• Wet or Dry Use: Can be used in both wet and dry conditions, offering flexibility for different working environments and stone types.
technical data
| Diameter(Inch/mm) | Segment Height(mm) | Grit Size(#) | Connection |
| 100 | 2.0-5.0 | 30#-40#, 50-60# | 7/8“-5/8"/M14/5/8"-11 |
| 115 | 2.0-5.0 | 30#-40#, 50-60# | 7/8“-5/8"/M14/5/8"-11 |
| 125 | 2.0-5.0 | 30#-40#, 50-60# | 7/8“-5/8"/M14/5/8"-11 |
| 150 | 2.0-5.0 | 30#-40#, 50-60# | 7/8“-5/8"/M14/5/8"-11 |
PACKAGING & SHIPPING
• For urgent orders with lighter weight or samples, we recommend using express delivery.
• For regular orders weighing over 45kgs, air cargo is recommended.
• For large diameter saw blades or heavy items, shipping by sea is recommended.
Xingong will provide recommendations based on the specific requirements of each order.
