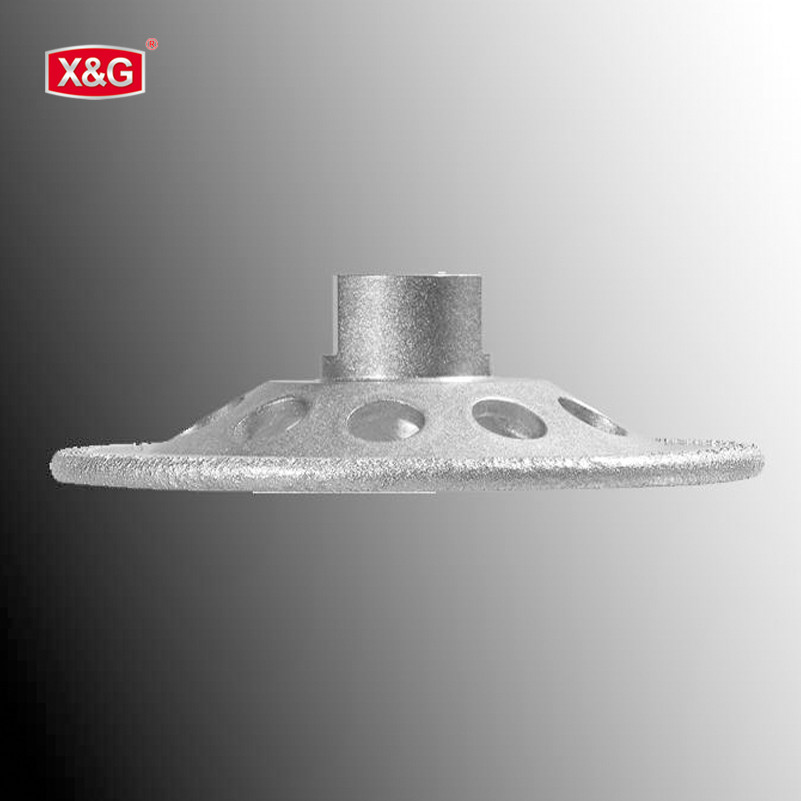

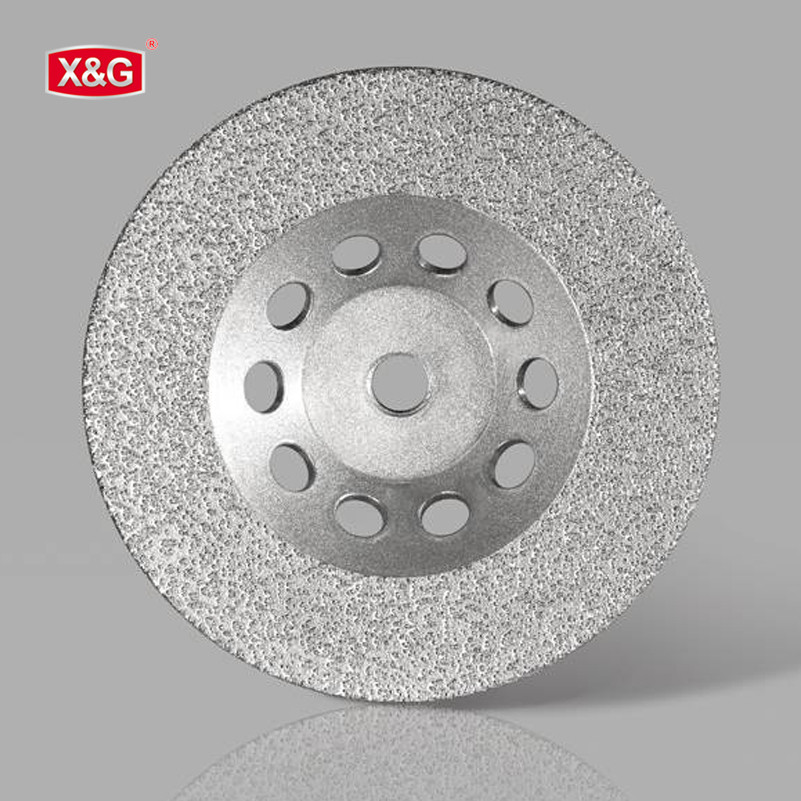

Vacuum Brazed Cup Grinding Wheel
product introduction
The Vacuum Brazed Cup Grinding Wheel from Xingong utilizes advanced vacuum brazed technology, making it a highly efficient tool for surface grinding and edge chamfering. These wheels are versatile, designed to work on a range of materials including soft to hard stones, concrete, and metal surfaces. Their robust design ensures reliable performance in both wet and dry conditions.
product advantage
• Advanced Vacuum Brazed Technology: Ensures high efficiency in surface grinding and edge chamfering, providing superior performance and durability.
• More Options: Available with both diamond bond and hard metal bond vacuum brazed on the face and edge, catering to different grinding needs.
• Multi-Material Use: Designed to work on a variety of surfaces including soft to hard stones, concrete, and metals, making it a highly versatile tool.
• Wet and Dry Use: Can be used in both wet and dry conditions, offering flexibility for various working environments.
technical data
| Diameter(Inch/mm) | Segment Height(mm) | Grit Size(#) | Connection | Bond |
| 100 | 2.0-5.0 | 30#-40#, 50-60# | 7/8“-5/8"/M14/5/8"-11 | Diamond |
| 115 | 2.0-5.0 | 30#-40#, 50-60# | 7/8“-5/8"/M14/5/8"-11 | Diamond |
| 125 | 2.0-5.0 | 30#-40#, 50-60# | 7/8“-5/8"/M14/5/8"-11 | Diamond |
| 150 | 2.0-5.0 | 30#-40#, 50-60# | 7/8“-5/8"/M14/5/8"-11 | Diamond |
| 100 | 2.0-5.0 | 30#-40#, 50-60# | 7/8“-5/8"/M14/5/8"-11 | Hard Metal |
| 115 | 2.0-5.0 | 30#-40#, 50-60# | 7/8“-5/8"/M14/5/8"-11 | Hard Metal |
| 125 | 2.0-5.0 | 30#-40#, 50-60# | 7/8“-5/8"/M14/5/8"-11 | Hard Metal |
| 150 | 2.0-5.0 | 30#-40#, 50-60# | 7/8“-5/8"/M14/5/8"-11 | Hard Metal |
PACKAGING & SHIPPING
• For urgent orders with lighter weight or samples, we recommend using express delivery.
• For regular orders weighing over 45kgs, air cargo is recommended.
• For large diameter saw blades or heavy items, shipping by sea is recommended.
Xingong will provide recommendations based on the specific requirements of each order.
