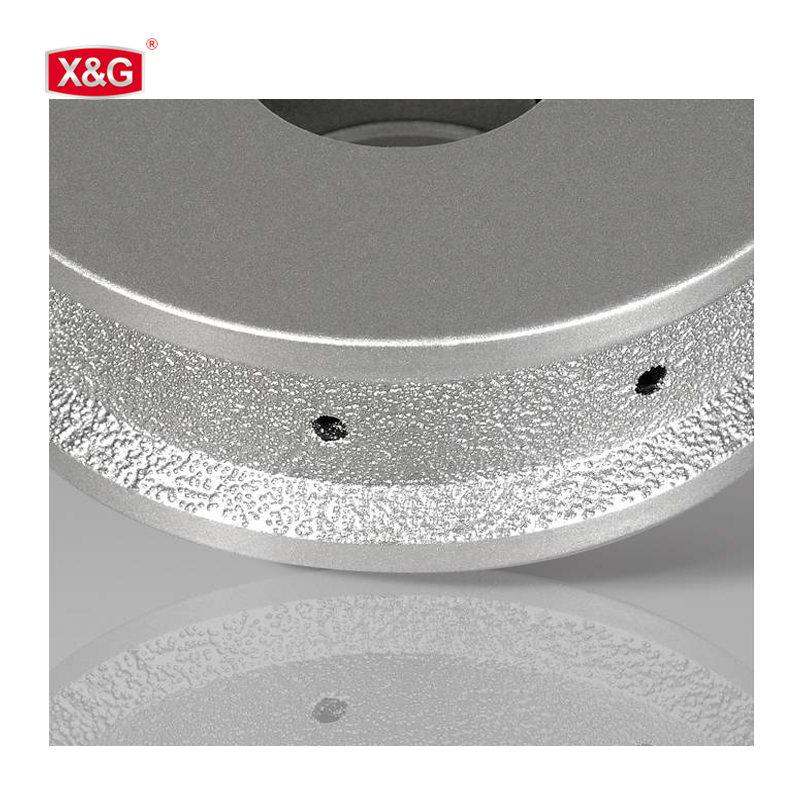

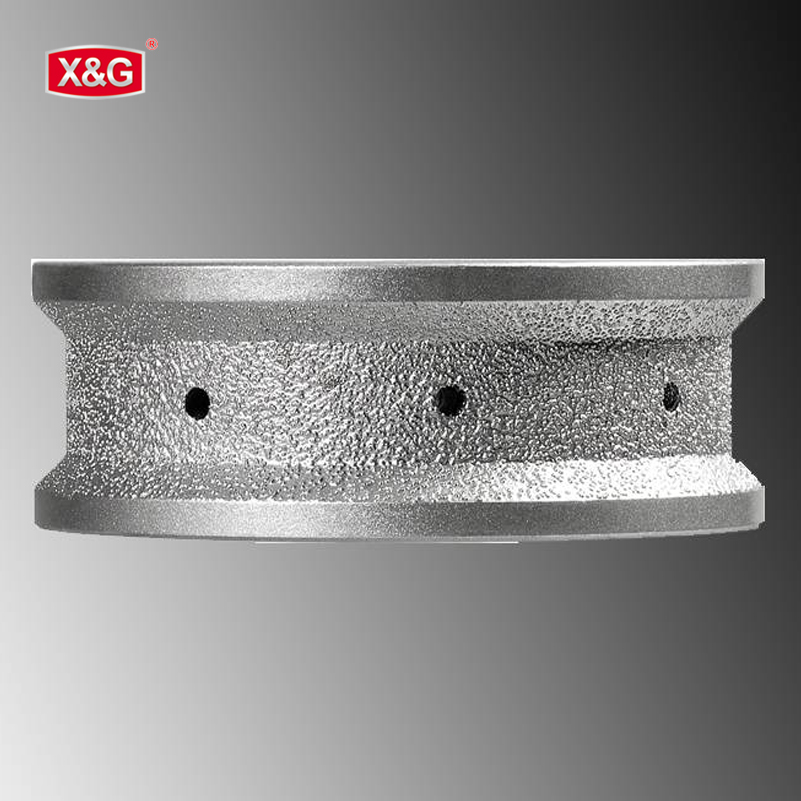

Vacuum Brazed CNC Profile Wheel
product introduction
The CNC Profile Wheel from Xingong is a specialized tool designed for precision profiling and shaping of marble, limestone, and other soft stones. These wheels are designed for use with CNC machines, providing accurate and efficient results. With smaller external diameters compared to traditional grinding wheels and integrated water-cooling holes, these profile wheels are optimized for performance and longevity.
product advantage
• Smaller External Diameter: CNC Profile Wheels have a smaller external diameter compared to grinding wheels, making them ideal for detailed profiling tasks. Popular diameters include 60mm, 100mm, and 120mm.
• Water Cooling Design: Equipped with water cooling holes to facilitate effective cooling during operation, enhancing the tool's performance and life.
• Versatile Grit Sizes: Available in coarse, medium, and fine diamond grit sizes, catering to various stages of profiling and finishing.
• High Precision: Ensures precise and fast shaping, delivering excellent tool life and high-quality finishes on marble, limestone, and other soft stones.
• Durability: Made with high-quality diamond abrasives for extended tool life and consistent performance.
technical data
| Diameter(Inch/mm) | Stone Height(mm) | Inner(mm) | Application |
| 60 | 20/30/40 | 35 | granite, marble, cermic, glass,etc |
| 80 | 20/30/40 | 35 | granite, marble, cermic, glass,etc |
| 100 | 20/30/40 | 35 | granite, marble, cermic, glass,etc |
| 120 | 20/30/40 | 35 | granite, marble, cermic, glass,etc |
PACKAGING & SHIPPING
• For urgent orders with lighter weight or samples, we recommend using express delivery.
• For regular orders weighing over 45kgs, air cargo is recommended.
• For large diameter saw blades or heavy items, shipping by sea is recommended.
Xingong will provide recommendations based on the specific requirements of each order.
