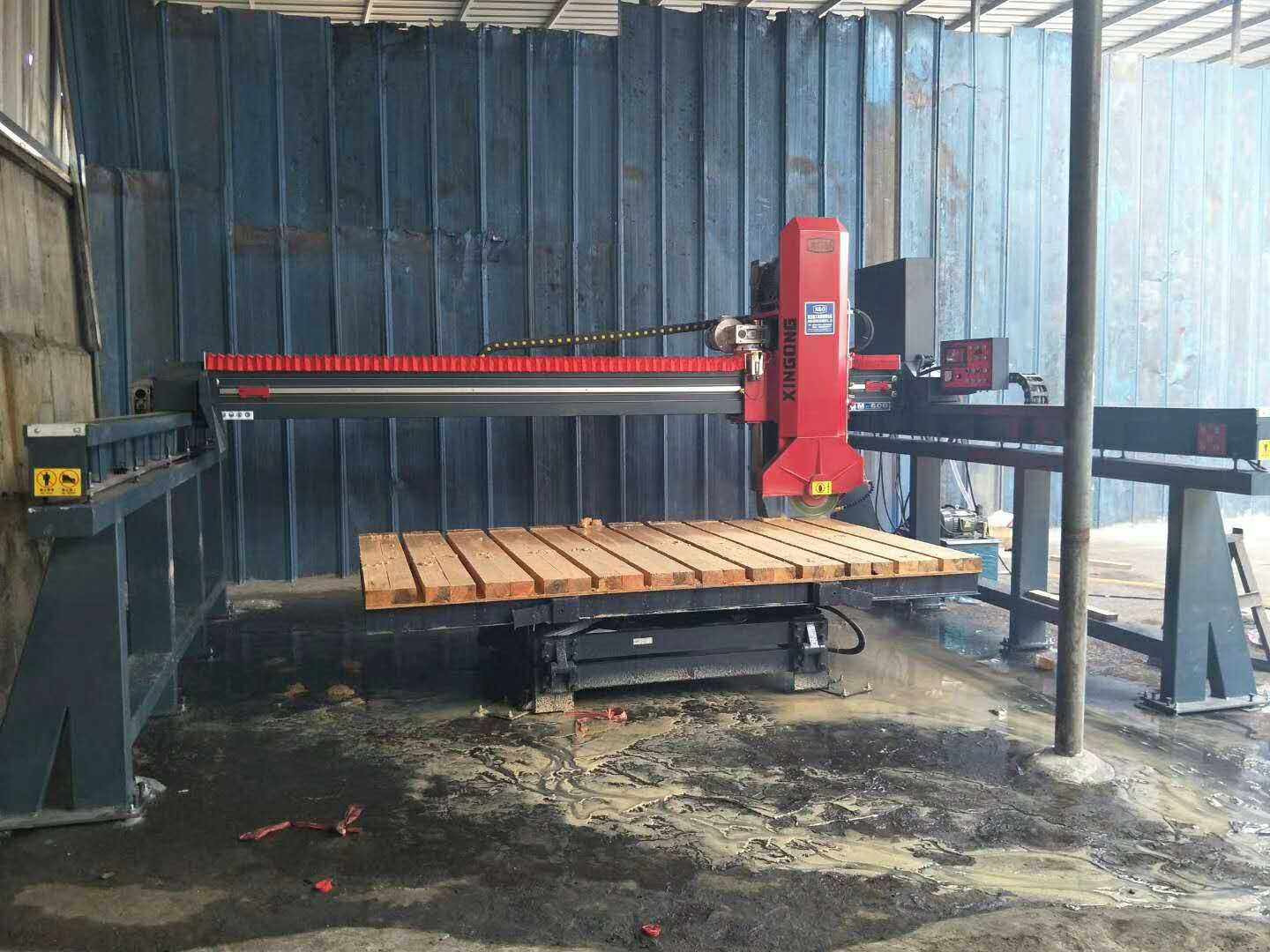

Laser Bridge Stone Cutting Machine Operation and Maintenance

Laser bridge stone cutting machine is a key equipment in the stone industry, mainly used for cutting granite and marble slabs. To ensure safety and optimal performance, a series of checks must be performed before using the machine.

Check before operation

1.Turn on the power

● Make sure the machine is connected to a reliable power source. This is the first step in initiating any operation.

2.Check indicator light

● Verify that all lights on the control panel are functioning properly. This helps confirm that the machine is powered on and ready to run.

3.emergency stop button

● Test the emergency stop button to ensure it is reliable and effective. This button is essential for quickly stopping the machine in an emergency.

4.Limit travel switch

● Check the limit travel switch to confirm it is functioning properly. These switches prevent the machine from moving beyond its designated range, ensuring safety during operation.

5.Motor rotation direction

● Check the direction of rotation of each motor. Improper rotation may cause mechanical failure or damage to the material being cut.

6.Operating buttons and knobs

● Make sure all operating buttons and knobs are correct, reliable and effective. This includes verifying that they are responding accurately when participating.

7.Hydraulic pump station

● Confirm that the hydraulic pump station is operating normally. Hydraulic systems are critical for smooth movement of the cutting head and other components.

8.Directional valve

● Check the reliability and effectiveness of the reversing valve. These valves control the direction of hydraulic fluid, which in turn controls the movement of the hydraulic cylinder.

9.Cylinder and flap rotation

● Check whether the guide column lifting cylinder, steering cylinder and trolley turning cylinder are working normally. Also, check the flip rotation angle to make sure it is working properly during the cutting process.

10.Electromechanical system

● Check all electrical circuits, oil lines and mechanical transmissions for any problems. A thorough inspection helps prevent operational failures.

No-load test run

After manual trial operation of a single machine, it needs to run without load for 2-4 hours. This step allows you to check that the entire machine is running smoothly and if there are any signs of binding or unusual noises, which could indicate an underlying problem.

PLC program parameters

Once the no-load test confirms that the machine is operating reliably, the next step is to check the PLC (Programmable Logic Controller) program parameters. This involves:

● Verify that the PLC program parameter settings are correct. Incorrect parameters may cause improper machine operation.

● Enter the set parameters into the PLC using an appropriate text interface.

● Check the accuracy and effectiveness of the display to ensure it correctly reflects the operating status of the machine.

Performing these checks and procedures ensures that your laser bridge stone cutter operates safely and efficiently. Regular maintenance and correct operating procedures can help extend the life of your machine and improve its performance, ultimately helping to improve the quality of your stone processing work.

As a manufacturer of large-scale stone cutting machines, our Xingong Machine’s products are designed to meet the needs of stone processing of all sizes and complexities, providing strong support for your business.
