Manual Polishing Machine for Stone Surface Polishing
product video
product introduction

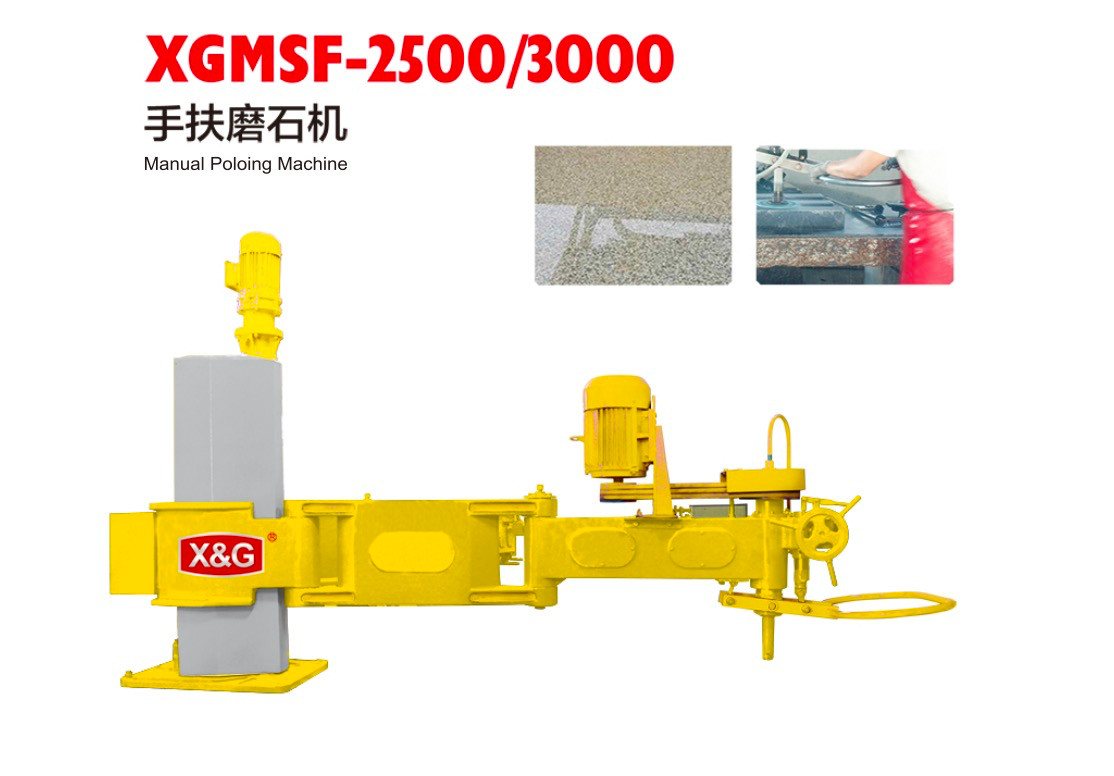

Xingong Manual Polishing Machine uses round column as its guide slip surface for steady automatic ups and downs. Two optional main drive motors (single speed and dual speeds) are upon the clients choice. It is applicable to surface grinding and polishing of tombstones, slabs and mosaic which needs to change the thickness frequently. The workable for grinding interior/exterior arcs is available upon customer’s request. Available for Arc slab polishing as well if assorted with table.
product advantage
• Steady Performance: Uses round column guide slip surface for stable automatic ups and downs.
• Flexible Motor Options: Offers choice between single-speed and dual-speed main drive motors.
• Versatile Applications: Suitable for grinding and polishing tombstones, slabs, and mosaics.
• Adaptable Features: Can grind interior/exterior arcs and polish arc slabs when used with a table.
technical data
| Attribute | SF2500 | SF3000 |
| Gyro Radius | 2500 mm | 3000 mm |
| Max. Range of vertical stroke | 80 mm | 80 mm |
| Water consumption | 1 m³/h | 1 m³/h |
| Main motor power | 5.5 kW | 5.5 kW |
| Total power | 5.5/6.1 kW | 5.5/6.1 kW |
| Overall dimensions (L×W×H) | 3200×1650×1800 mm | 3800×1650×1800 mm |
| Approximate weight | 730 kg | 800 kg |
