High precision 3-axis bridge sawing machine
product video
product introduction

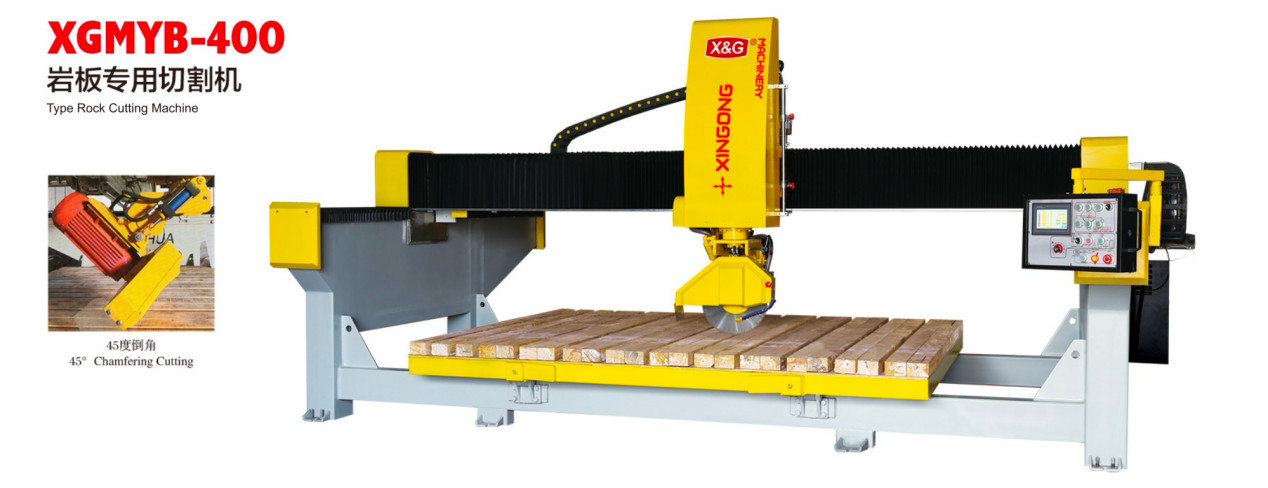

Xingong 3 Axis Bridge Saw is PLC Controlled System. The machine head can be rotated 90 degrees in the horizontal plane (45 degrees one positioning), and the worktable can flip 85 degrees. Precise manufacturing and assembly, unique side beam protection device, and touch-type operating system make it have the characteristics of high precision, high stability, high efficiency, and convenient operation. This machine is especially suitable for processing Sintered stone slabs.
product advantage
• High Precision: PLC-controlled for accurate cutting.
• High Stability: Unique side beam protection and stable operation.
• High Efficiency: 90° rotation and 85° flip for efficient processing.
• Convenient Operation: Easy-to-use touch-type operating system.
• Wide Applicability: Ideal for Sintered stone slabs.
technical data
| Category | Specification (Metric Units) | Units |
| Overall dimensions | 5000 × 3500 × 2600 mm | mm |
| Processing extent | 3000 × 2000 mm | mm |
| Main motor power | 13 kW | kW |
| Total power | 17 kW | kW |
| Left and right motor power | 1.5 kW | kW |
| Front and rear motor power | 1.5 kW | kW |
| Walking speed | 0.25~4.5 | m^3/min |
| Head angle | 45-90 degrees | degrees |
| Round trip stop | Random | |
| Rotating speed | 2880 r/min | r/min |
| Power supply | 50Hz-380V | Hz-V |
| Maximum blade diameter | 350-400 mm | mm |
| Maximum lifting stroke | 220 mm | mm |
