Fire Rescue Blade
product introduction

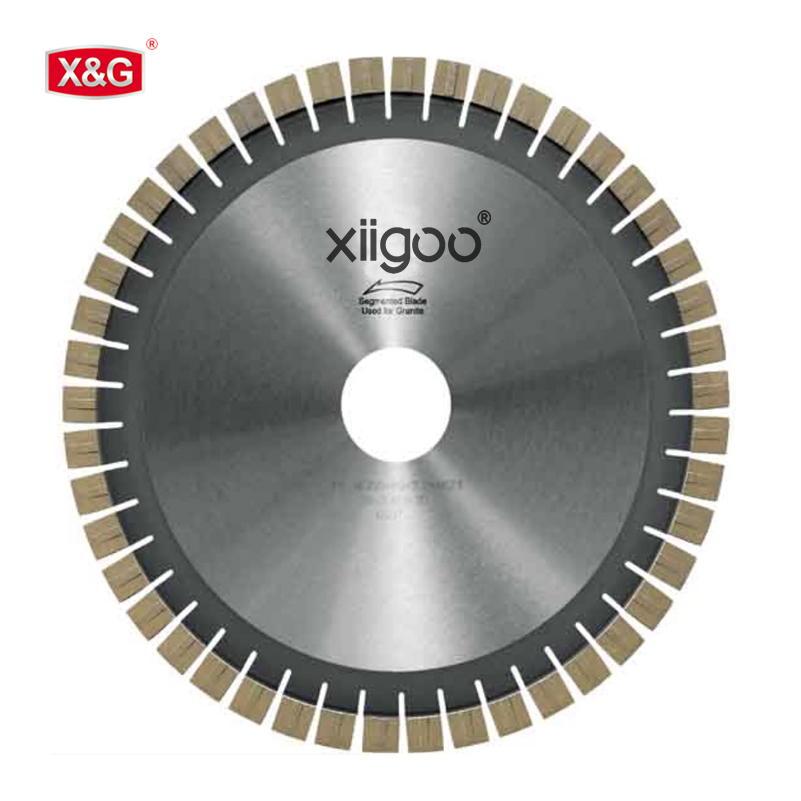

Utilizing advanced vacuum brazed technology, this blade features diamond segments laser welded onto a steel core, with the core electroplated with silicon carbide for enhanced side protection and efficient material escape.
product advantage
• Good Sharpness and High Efficiency: The blade maintains its sharpness throughout the cutting process, enabling quick and efficient operations.
• Long Lifespan: Constructed for durability, reducing the frequency of replacements and thereby lowering operational costs.
• Good Cutting Result: Provides smooth cutting with flat surfaces and even sizes, resulting in high-quality finishes.
• Stable Cutting: Ensures stable cutting with a narrow cutting gap, which helps in reducing stone waste.
technical data
| Diameter(Inch/mm) | Segment Height(mm) | Grit Size(#) | Connection | Equipment |
| 4“/105 | 3.0-5.0 | 30-60# | 7-8"-5-8" | Angle Grinder |
| 4.5"/115 | 3.0-5.0 | 30-60# | 7-8"-5-8" | Angle Grinder |
| 5"/125 | 3.0-5.0 | 30-60# | 7-8"-5-8" | Angle Grinder |
| 6"/150 | 3.0-5.0 | 30-60# | 7-8"-5-8" | Angle Grinder |
| 7"/170 | 3.0-5.0 | 30-60# | 7-8"-5-8" | Angle Grinder/Circular Saw |
| 10"/250 | 3.0-5.0 | 30-60# | 7-8"-5-8" | Cut-off Saw/Tile Saw/Masonry Saw |
| 12"/300 | 3.0-5.0 | 30-60# | 7-8"-5-8" | Cut-off Saw/Tile Saw/Masonry Saw |
| 14"/350 | 3.0-5.0 | 30-60# | 1"-20mm | Cut-off Saw/Tile Saw/Masonry Saw |
| 16"/400 | 3.0-5.0 | 30-60# | 1"-20mm | Cut-off Saw//Walk Behind Saw |
PACKAGING & SHIPPING
• For urgent orders with lighter weight or samples, we recommend using express delivery.
• For regular orders weighing over 45kgs, air cargo is recommended.
• For large diameter saw blades or heavy items, shipping by sea is recommended.
Xingong will provide recommendations based on the specific requirements of each order.
