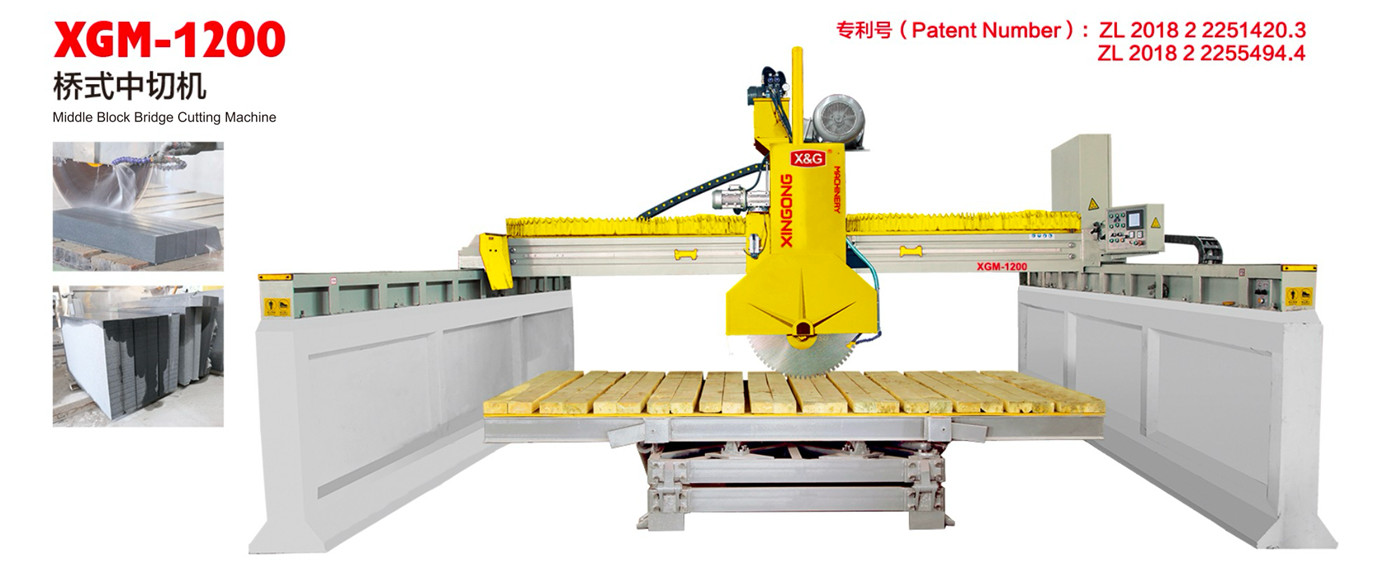

Efficient Middle Block Cutting Machine for Granite and Marble
product video
product introduction
The Xingong Infrared Bridge Cutting Machine is equipped with an advanced PLC Control System, offering unparalleled control and precision. Its versatile worktable can rotate 90° or 360° (with incremental stops at 45°) in the horizontal plane, and also includes an 85° flip function. Boasting precise manufacturing, assembly, a unique side beam protection device, and a touch-screen operating system, this machine embodies high precision, stability, efficiency, and user-friendliness. Specially designed for processing high-value, thick tombstones, and road traffic stones, it is a valuable addition to any stone fabrication facility.
product advantage
• Precision Cutting: Leveraging PLC control, the machine ensures precise and accurate cutting every time.
• Stable Operation: Its unique side beam protection device and stable performance minimize vibrations, ensuring a smooth and reliable cutting process.
• Efficiency Boost: The 90° rotation and 85° flip capabilities greatly enhance processing speed and efficiency.
• User-Friendly Interface: The touch-screen operating system is intuitive and easy to navigate, simplifying the operation process.
• Versatile Applications: Perfectly suited for cutting a wide range of materials, including tombstones and road traffic stones, it offers broad applicability and flexibility.
technical data
| Specification | Value |
| Model | XGM-1200 x 2500 |
| Max. processing size (L x W x H) | 3000mm x 1200 x 450 mm |
| Diameter of blade | Ø600 - Ø1200 mm |
| Dimensions of worktable (L x W) | 3500 x 2000 mm |
| Workable rotating degree | 0° - 90° - 360° (45) |
| Main motor power | 30 kW |
| Water consumption | 4 m³/h |
| Overall dimensions (L x W x H) | 6400 x 4800 x 4400 mm |
| Weight | 72000 kg (including stand 12T) |
