CNC Profiling Machine for Stone Design and Shaping
product video
product introduction

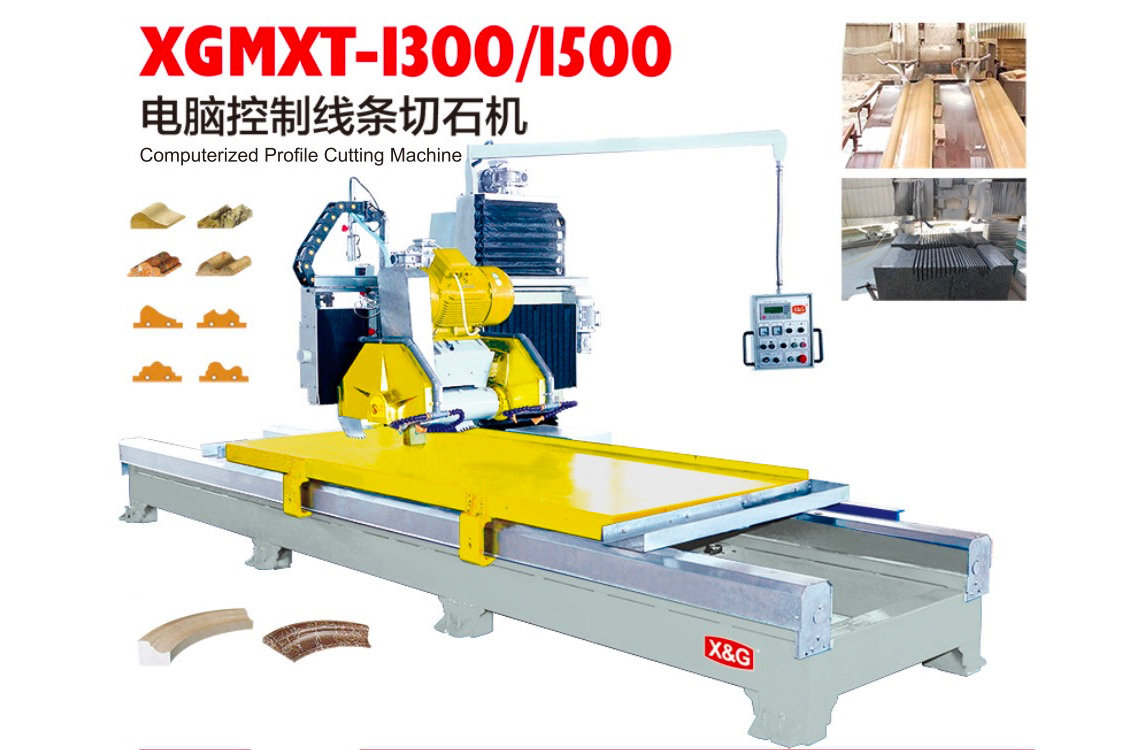

Xingong CNC Profile machine is designed with a fixed beam cantilever structure and dual Z-axis configuration, ensuring stability and precision. It utilizes double disc saw blades ranging from 350mm to 600mm in diameter, capable of cutting widths up to 1200mm and lengths up to 3000mm. Powered by a specialized CNC system on the Windows XP platform, it supports straight line and arc interpolation, allows online editing of processing graphics, and offers input options via USB interface or wireless transmission. The machine also supports remote control operation, providing efficient and precise processing solutions for stone special-shaped lines.
product advantage
• Stable and Precise Cutting: Fixed beam cantilever structure with dual Z-axis ensures stability and accuracy.
• Versatile Cutting Capacity: Handles dual disc saw blades (350-600mm diameter) for widths up to 1200mm and lengths up to 3000mm.
• Efficient CNC System: Windows XP-based CNC system supports straight line and arc interpolation for flexible shaping.
• User-Friendly: Allows online editing of graphics, with USB or wireless input options.
technical data
| Specification | XGMX-1300 | XGMX-1500 |
| Max. Processing Size (L x W x H) | 3000 × 1150 × 600 mm | 3000 × 1350 × 600 mm |
| Max. Cutting Thickness | 180 mm | 180 mm |
| Blade Diameter | 350-600 mm | 350-600 mm |
| Cutting Feed | 0-7500 mm/min | 0-7500 mm/min |
| Main Motor Power | 15 kW | 18.5 kW |
| Water Consumption | 4 m³/h | 4 m³/h |
| Overall Dimensions (L x W x H) | 5000 × 2200 × 2400 mm | 5000 × 2400 × 2400 mm |
| Weight | 4800 kg | 5200 kg |
