A-Frame Slab Rack 4
product introduction

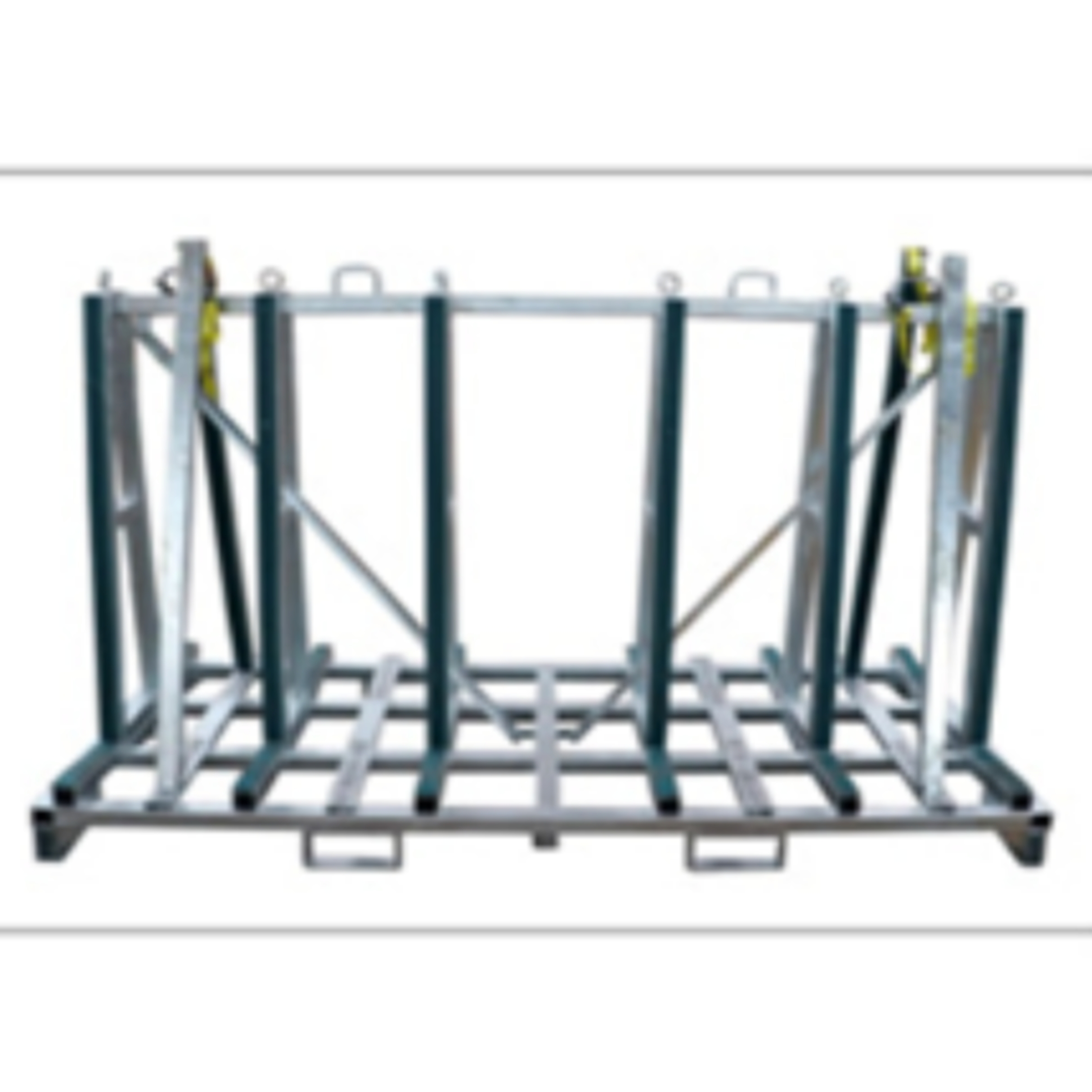

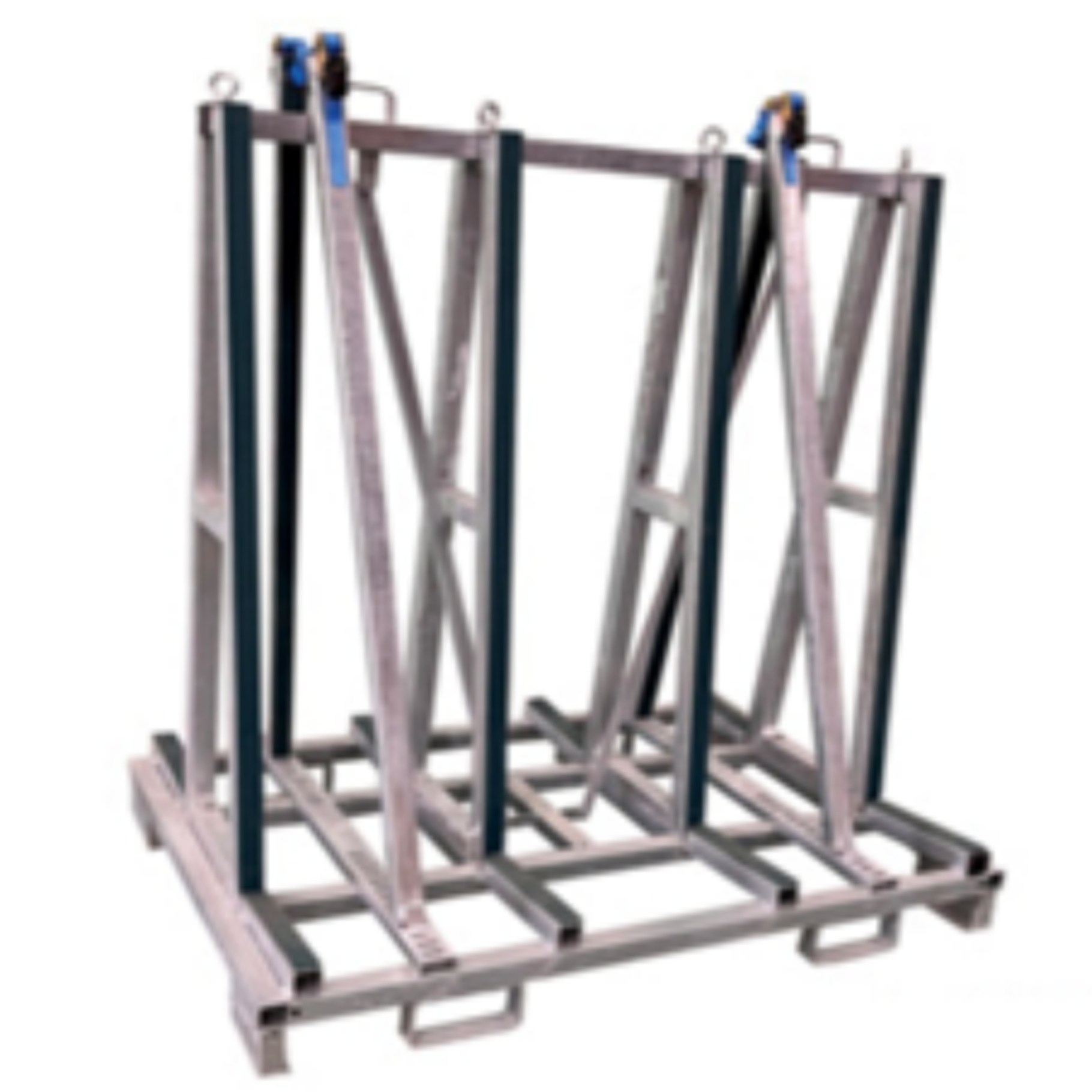

The A - Frame Slab Rack 4 is a specialized storage solution for industrial and construction materials. Constructed with high - quality metal, its A - frame design offers exceptional stability and strength. It features multiple securing points and straps, ensuring slabs are safely stored and transported. This rack optimizes space usage, allowing for vertical stacking of slabs. Its user - friendly design simplifies loading and unloading, enhancing operational efficiency in warehouses and construction sites.
product advantage
• Constructed from high - quality metal, the A - Frame Slab Rack 4 offers exceptional sturdiness and long - lasting performance, withstanding heavy usage in industrial environments.
• Multiple securing points and included straps ensure slabs are tightly fastened, minimizing the risk of displacement or falls during storage and transportation.
• Its A - frame structure enables vertical stacking of slabs, optimizing floor space in warehouses and construction sites, and improving overall storage efficiency.
• The ergonomic design allows for easy access to slabs, simplifying loading and unloading processes. This helps reduce handling time and boost operational productivity.
technical data
| MODEL | DIMENSIONS (LxWxH) | PACK SIZE (LxWxH) |
SLAB PLACED WIDTH | SLAB PLACED HEIGHT | LOAD CAPACITY | NET WEIGHT |
| XGM-ASR4A | 2800×1100×2150mm | 2800×1100×350mm | 290mm Each Side | 1950mm | 3T | 225Kg |
| XGM-ASR4B | 2800×1100×1650mm | 2800×1100×350mm | 315mm Each Side | 1450mm | 3T | 200Kg |
| XGM-ASR4C | 2200×1100×1650mm | 2200×1100×350mm | 315mm Each Side | 1450mm | 3T | 190Kg |
| XGM-ASR4D | 2200×1100×1350mm | 2200×1100×350mm | 340mm Each Side | 1150mm | 3T | 170Kg |
| XGM-ASR4E | 1500×1100×1650mm | 1500×1100×300mm | 315mm Each Side | 1450mm | 2.7T | 142Kg |
| XGM-ASR4F | 1500×1100×1350mm | 1500×1100×350mm | 340mm Each Side | 1150mm | 2.7T | 130Kg |
PACKAGING & SHIPPING
• For urgent orders with lighter weight or samples, we recommend using express delivery.
• For regular orders weighing over 45kgs, air cargo is recommended.
• For large diameter saw blades or heavy items, shipping by sea is recommended.
Xingong will provide recommendations based on the specific requirements of each order.
